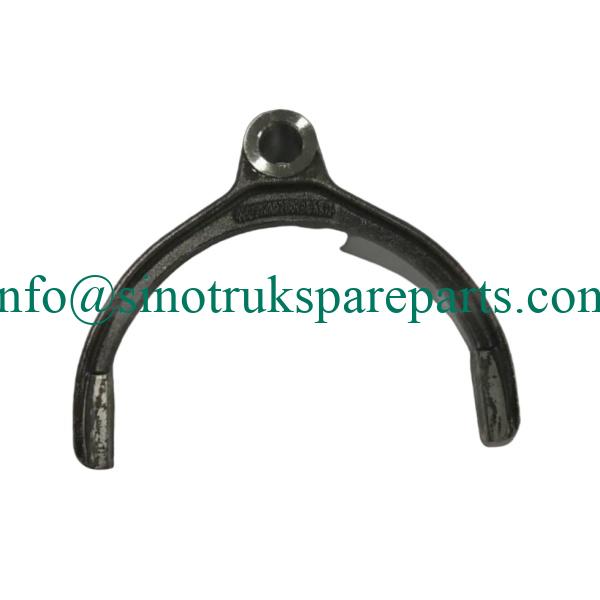

Sinotruk HOWO Transmission Shift Fork for Helical Gears & Synchro Assembly – WG2214220072

CATEGORÍA Y ETIQUETAS:
Piezas del chasis de Sinotruk , , , , , , , , , , , , , ,

Por qué elegirnos?
Calidad confiable: Nuestros productos cumplen con los más altos estándares de la industria.
Entrega rápida: Envío eficiente para garantizar un tiempo de inactividad mínimo.
Soporte experto: Asistencia profesional para la instalación y solución de problemas.

investigación
  • Presupuesto
  • Servicio
  • Notas de instalación
  • Paquete

High-performance replacement shift fork designed specifically for Sinotruk HOWO heavy-duty truck transmissions using helical-cut gears. Direct OEM-equivalent fit for part number WG2214220072, engineered to ensure smooth gear engagement and long service life in demanding transport, minería, and construction environments.

This part is compatible with popular HOWO models including ZZ1257N3817C, ZZ4257M3217C, HOHV AC5, and TC series, especially those fitted with HW19710 and HW19712 manual transmissions. Whether you’re servicing one truck or managing a cross-border fleet, this durable component delivers consistent performance at a competitive price.

🔧 Especificaciones técnicas:

  • Número OEM: WG2214220072
  • Solicitud: 3rd/4th Gear Synchronizer (Helical Type)
  • Material: Forged Alloy Steel (Heat Treated)
  • Tratamiento superficial: Black Oxide Coating
  • Peso: 1.28 kg
  • Dimensiones: 208 × 83 × 44 mm
  • Transmission Models: HW19710, HW19712
  • Compatible Trucks: Sinotruk HOWO ZZ1257, ZZ4257, AC5, TC Series
  • embalaje: Industrial carton with foam padding – 1 pc per box

1. TRATAMOS A CADA CLIENTE COMO NUESTRO AMIGO, PEGARSE AL PRINCIPIO: BENEFICIO MUTUO Y GANADOR ;
2. UNA VARIEDAD DE ELECCIÓN DE PRODUCTOS: CALIDAD, MARCA, EMBALAJE;
3. LE RESPONDEREMOS SU CONSULTA EN 24 HORAS.
4.Proveedor de piezas de rendimiento profesional SINOTRUCK
5. ESTAREMOS EN SERVICIO 24/24 HORAS DEL DÍA LABORAL.
6. CULO: LE OFRECEMOS EL MEJOR SERVICIO POSTVENTA.

How to Install the Sinotruk HOWO Shift Fork (WG2214220072) – Technician Tips

  1. Pre-Work Check: Disconnect battery ground, drain transmission oil, and safely remove gearbox. Clean all external surfaces before disassembly.
  2. Selector Rod Access: Remove the shift rail plug and extract the selector rod. Take note of fork orientation — this model engages with the 3rd/4th gear synchro sleeve.
  3. Fork Removal: Loosen retaining bolt and slide off old fork. Inspect for groove wear or bending — common failure signs include grinding noises during shifts.
  4. New Fork Fitment: Slide new WG2214220072 fork onto the selector rod. Ensure legs align precisely with the synchronizer hub; there should be no lateral play.
  5. Esfuerzo de torsión & Reassembly: Tighten mounting bolt to 20 Nm ± 2 Nuevo Méjico. Over-tightening may crack the fork base. Reinstall rail and test movement by hand before closing case.
  6. Final Test: Refill with recommended GL-5 80W-90 gear oil. Perform neutral-to-gear cycling manually if possible. Start engine only after full reassembly.
